Deep Blue (RB02-HD) Vinyl Wrap

Description

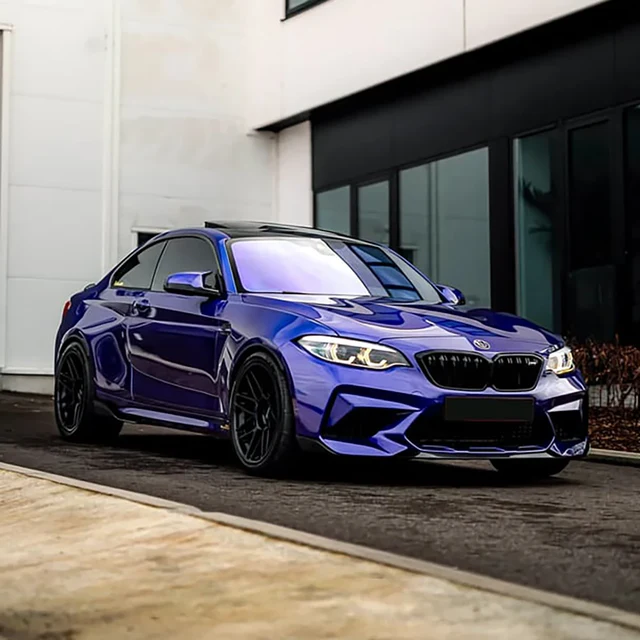

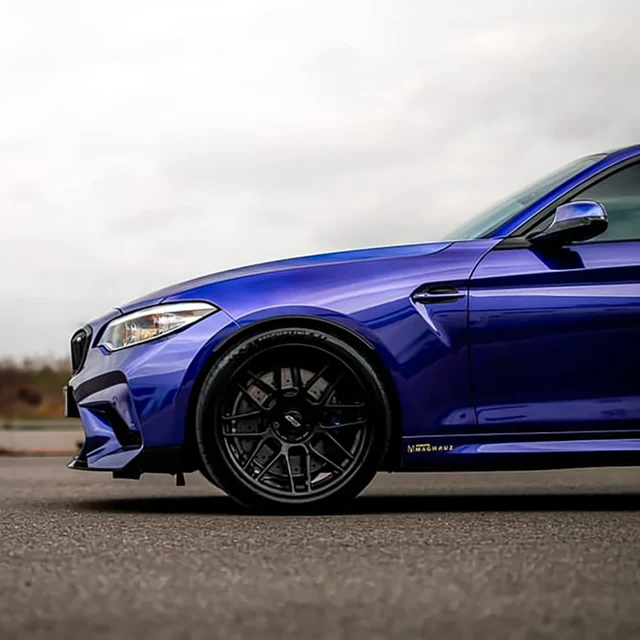

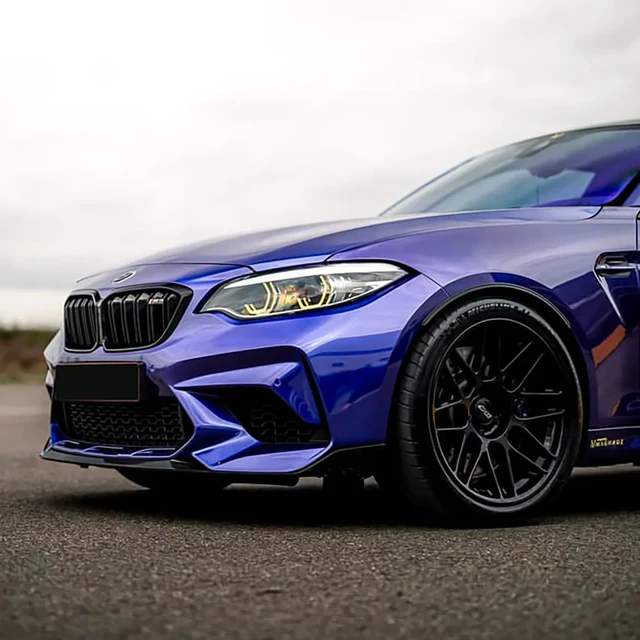

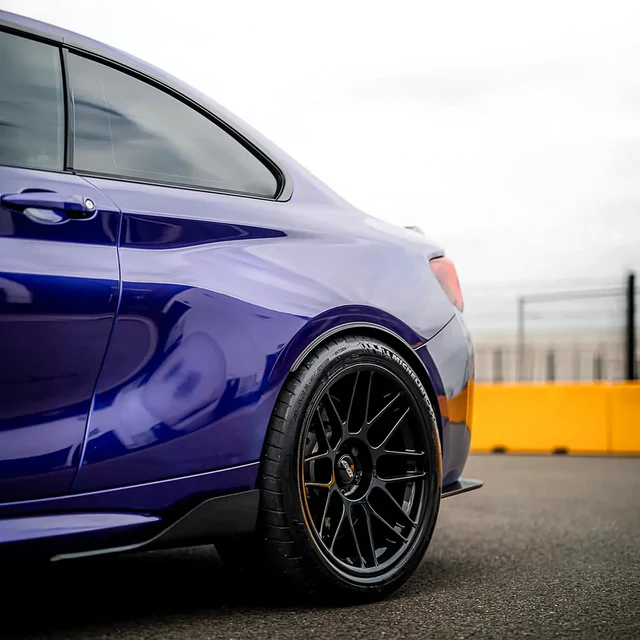

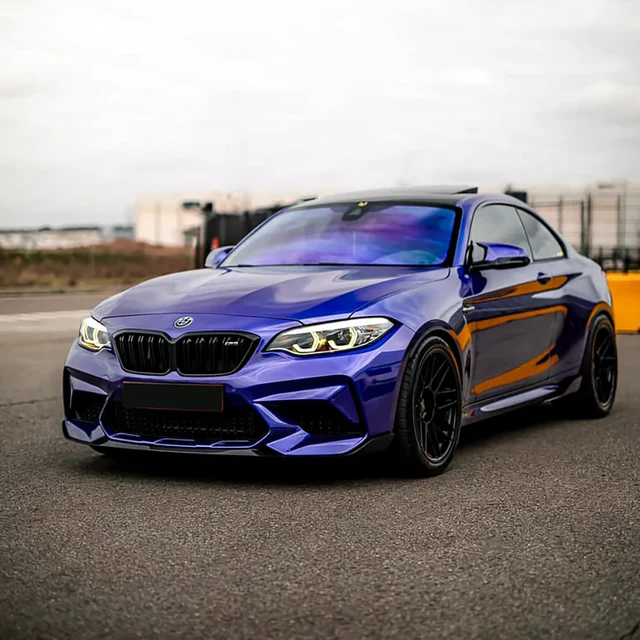

Deep Blue reflects intelligence and wisdom, making it a timeless choice for those who appreciate logic and clarity. This classic shade delivers a refined look while adding a smart, confident presence to your vehicle.

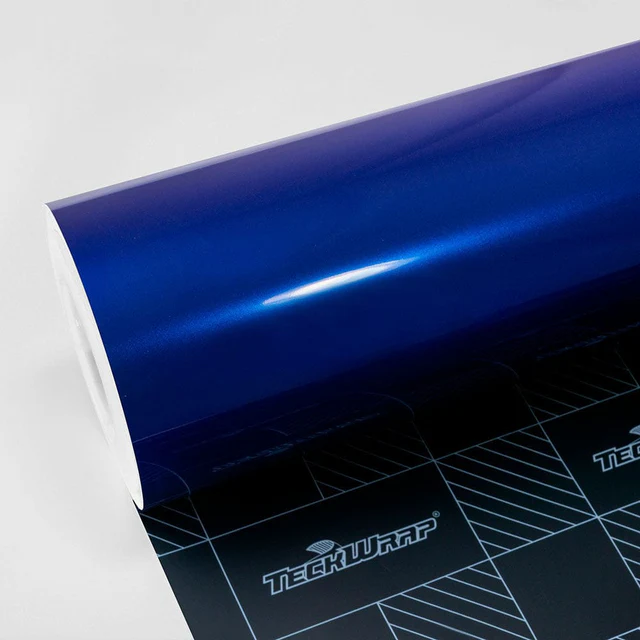

The Gloss Metallic vinyl wrap features a smooth, high-gloss finish, crafted from premium polymeric multilayered calendared vinyl film with air-release channels. Designed for durability and flexibility, it offers excellent conformability, allowing easy application over curves, edges, and recessed areas. The solvent polyacrylate adhesive ensures a secure bond while remaining safe for your vehicle’s paint.

Specifications

•  Film Type: Premium-grade polymeric multilayered hybrid vinyl with air-release channels
•  Film Thickness: 122 μm
•  Release Liner Thickness: 142 μm
•  Series: 190 Series
•  Roll Size: 1.52 m × 18 m (59.8″ × 708.6″)
•  Material: Conformable polymeric vinyl with stable color pigments

Adhesive

•  Type: Henkel solvent-based acrylic adhesive
•  Properties: Transparent, ultra-weather-resistant
•  Viscosity: 1000–3000 cps
•  Thickness: 12 μm (dry)

Performance

•  Durability / Warranty: View Datasheet
•  Application Temperature: +17°C to +18°C
•  Service Temperature: -45°C to +45°C
•  Release Force: 0.17 N/25mm (Standard: 0.10–0.30)
•  Initial Tack: 840 g/25mm (Standard: 800–1500)
•  Peel Strength (180°): 8.7 N/25mm (Standard ≥ 6.8)
•  Adhesion Strength: 70 (Standard ≥ 60, no shifting)

Durability Testing

•  High Temperature Aging (65°C, 7 days): No adhesive residue
•  Low Temperature Aging (-65°C, 10 days): No adhesive residue

Installation

•  Recommended Tools: Squeegee, buffer, knife, masking tape, heat gun, magnets, gloves, IR thermometer, IR heater
•  Method: Standard calendered film application, avoid overstretching
•  Post-Heating Temperature: 100°C
•  Cure Time: 24 hours (above 10°C)
•  Directional: Yes

Storage

•  Shelf Life: 2 years
•  Conditions: +10°C to +20°C, 50% humidity, original packaging, away from sunlight, clean and dry place

Aftercare

• Use pH-neutral cleaning products
• Avoid waxes and harsh solvents

Notes

• Products with “HD” in SKU include a plastic release liner (for high-gloss films)
• Remove the protective cap before installation
• Colors may vary slightly—always check the physical swatch
• Use the same production lot for consistent color
• Scratches from use or installation are not covered under warranty
