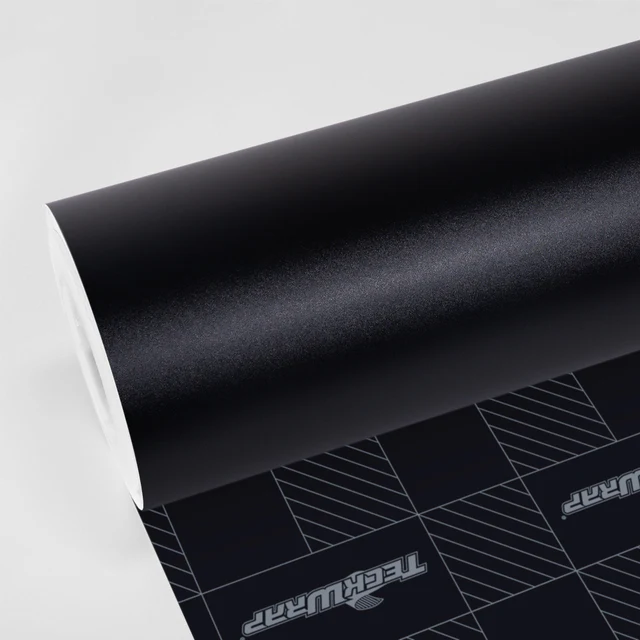

Grainy Black (CM02-MS) Vinyl Wrap

TeckWrap Grainy Black is not a typical black. It’s slightly off the stereotype, revealing a different hue, an excellent choice for the flexible.

With a collection of solid colors, TeckWrap offers you this series of super matte vinyl wraps, which gives your vehicle a subtle-looking finish. As a proud supplier, TeckWrap has plenty of film selections with good conformability and durability. The material is stretchable enough to wrap every edge and recessed area easily.

Specifications

•  Film Thickness: 0.12 mm
•  Total Thickness (with liner): 0.28 mm
•  Film Type: Premium-grade polymeric hybrid film with air-release channels
•  Series: 180 Series

Adhesive & Liner

•  Adhesive: Henkel solvent-based acrylic, transparent, ultra-weather-resistant (viscosity 1000–3000 cps, thickness 12 μm dry)
•  Release Liner: Felix Schoeller, double-side PE coated Kraft with solventless silicone coating and air-release (ISO 9001, ISO 14001, OHSAS 18001)

Performance

•  Durability / Warranty: View Datasheet
•  Dimensional Stability: Shrinkage less than 0.20%
•  Plastification: 25% – 32%
•  Breaking Strength: 30.7 N/10mm (ASTM D3759)
•  Peel Strength (180°): 9 N/10mm (ASTM D3330)

UV Resistance

Test Standards: ASTM D4329-13 Cycle A & ISO 105-A02
Result: 4–5
Conditions: UVA-340, 8h UV at 60°C + 4h condensation at 50°C, duration 48h

Installation Guidelines

•  Application Temperature: +18°C to +20°C
•  Service Temperature: -30°C to +30°C
•  Tools: Standard squeegee with soft buffer
•  Surface Compatibility: Smooth and medium-curved surfaces
•  Directional: Yes
•  Overlap Width: 3–4 mm

Packaging

•  Roll Width: 152 cm
•  Length: 18 m
•  Weight: 13 kg

Important Notes

• Remove the protective cap before installation
• Colors and finishes may vary, always check the physical swatch
• Use rolls from the same production lot for consistent color matching
• Film may scratch during installation or daily use; scratches are not covered under warranty
