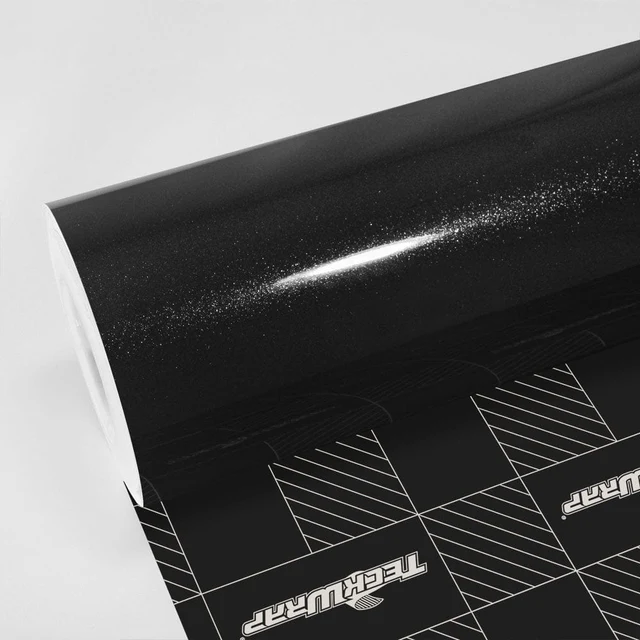

Ebony Sparkle (CK202-HD) Vinyl Wrap

Description

Ebony Sparkle redefines black with a radiant twist. Deep, bold, and infused with subtle glitter, this finish reveals its brilliance when the light hits, designed for those who want to stand out without saying a word.

Part of TeckWrap’s gloss glitter & diamond series, this vinyl wrap delivers a striking, diamond-like shine with a smooth, high-gloss surface. Crafted from premium polymeric multilayered film, it offers excellent durability and conformability, making it easy to apply on curves, edges, and recessed areas. The adhesive ensures a secure bond while allowing clean, hassle-free removal.

Specifications

•  Material: Premium polymeric vinyl with stable color pigments
•  Film Type: Polymeric multilayered hybrid film with air-release channels
•  Film Thickness: 0.16 mm
•  Total Thickness (with liner): 0.32 mm
•  Series: 190 Series
•  Suitable Surfaces: Smooth and medium-curved areas (roofs, mirrors, panels)

Adhesive & Liner

•  Adhesive: Henkel solvent-based acrylic, transparent, ultra-weather-resistant (viscosity 1000–3000 cps, thickness 12 μm dry)
•  Release Liner: Felix Schoeller, double-side PE coated Kraft (ISO 9001, ISO 14001, OHSAS 18001)

Performance

•  Durability / Warranty: View Datasheet
•  Dimensional Stability: Shrinkage less than 2%
•  Plastification: 28% – 38%
•  Breaking Strength: 23.7 N/10mm (ASTM D3759/D3759M-05)
•  Peel Strength: 6.4 N/10mm (ASTM D3330/D3330-04)

UV Resistance

Test Standards: ASTM D4329-13 Cycle A & ISO 105-A02
Result: 3–4 (Pass)
Conditions: UVA-340, 0.89 W/(m²·nm) @340nm, 60°C UV exposure + 50°C condensation cycle, duration 44h

Installation Guidelines

•  Application Temperature: +17°C to +18°C
•  Service Temperature: -45°C to +45°C
•  Tools: Standard squeegee
•  Conformability: Smooth and medium-curved surfaces
•  Directional: Yes
•  Overlap Width: 3–4 mm
•  Post-Heating Temperature: 90°C

Storage

•  Shelf Life: 2 years
•  Conditions: +10°C to +20°C, 50% humidity, original packaging, away from sunlight, clean and dry environment

Packaging

•  Roll Width: 152 cm
•  Length: 18 m
•  Weight: 14 kg

Important Notes

• Colors and finishes may vary slightly—always check the physical swatch
• Use rolls from the same production lot for consistent color matching
• Film may scratch during installation or daily use; scratches are not covered under warranty
