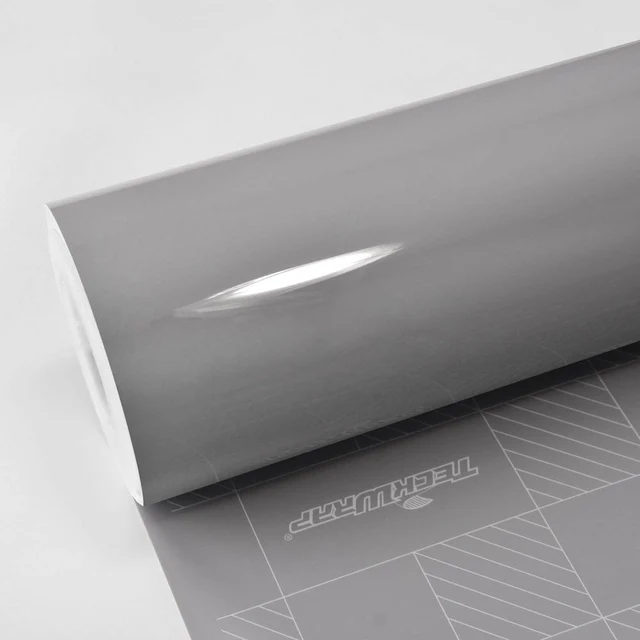

Dim Grey (CG27-PRO+) Vinyl Wrap

Description

You chose a wrap to make a statement, so why let everyday driving dull your vision? TeckWrap Dim Grey (CG27-PRO+) delivers a super gloss finish that doesn’t just look flawless, it stays that way.

Inspired by the iconic Nardo Grey tone, Dim Grey offers a deep, liquid-like gloss that instantly elevates your vehicle’s presence. This isn’t just about color, it’s about long-lasting perfection.

The secret lies in its self-healing top coat. Advanced technology allows the surface to recover from micro-scratches, swirl marks, and light scuffs. Everyday wear fades away, leaving behind a smooth, mirror-like finish that looks freshly applied.

Why Choose Dim Grey?

•  Deep Gloss Finish: Rich grey tone with high reflectivity and premium appeal
•  Self-Healing Technology: Minimizes visible scratches and swirl marks
•  Durable Performance: Resistant to stains, UV damage, and harsh weather
•  Installer-Friendly: Easy application with clean, residue-free removal
•  Long-Lasting Style: Maintains a showroom-quality finish over time

Dim Grey protects more than your paint—it protects your investment. Enjoy a finish that stays sharp, glossy, and refined every single day.

Specifications

•  Film Type: Premium-grade polymeric hybrid film with air-release channels
•  Film Thickness: 110 μm
•  Release Liner Thickness: 142 μm
•  Package: 152 cm width, 18 m or 23 m length

Adhesive & Liner

•  Adhesive: Henkel solvent-based acrylic, ultra-weather-resistant (viscosity 1000–3000 cps, thickness 12 μm dry)
•  Release Liner: Plastic liner

Performance

•  Durability / Warranty: View Datasheet
•  Release Force: 0.18 N/25mm (Standard: 0.10–0.30)
•  Initial Tack: 1015 g/25mm (Standard: 800–1500)
•  Peel Strength (180°): 8.1 N/25mm (Standard ≥ 4.9)
•  Adhesion Strength: 70 (Standard ≥ 60, no shifting)

Durability Testing

•  High Temperature Aging (65°C, 7 days): No adhesive residue
•  Low Temperature Aging (-65°C, 10 days): No adhesive residue

Installation Guidelines

•  Application Temperature: +16°C to +18°C
•  Service Temperature: -30°C to +45°C
•  Tools: Standard squeegee with soft buffer
•  Surface Compatibility: Smooth and medium-curved surfaces
•  Directional: No
•  Overlap Width: 3–4 mm
•  Post-Heating Temperature: 95°C

Storage

•  Shelf Life: 2 years
•  Conditions: +10°C to +20°C, 50% humidity, original packaging, away from sunlight, clean and dry environment
•  Important: Remove protective top layer before installation and store without it to prevent tunneling

Important Notes

• Colors and finishes may vary slightly—always check the physical swatch
• Use rolls from the same production lot for consistent color matching
• Film may scratch during installation or daily use; scratches are not covered under warranty
