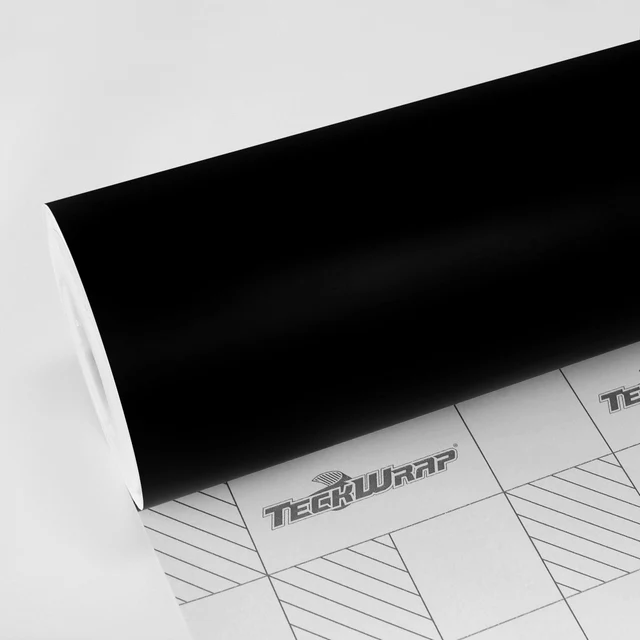

Deep black (SCM01) Vinyl Wrap

TeckWrap Deep Black brings a sense of absolute depth, perfect for those who value a bold yet refined look. Designed to reflect reliability and strength, this finish helps your vehicle stand out while maintaining a smooth, understated presence.

This super matte vinyl wrap is part of TeckWrap’s solid color collection, offering a subtle, non-reflective finish. Engineered for durability and flexibility, the film provides excellent conformability, allowing it to wrap edges and recessed areas with ease.

Specifications

•  Film Thickness: 0.12 mm
•  Total Thickness (with liner): 0.28 mm
•  Film Type: Premium-grade polymeric hybrid film with air-release channels
•  Series: 180 Series

Adhesive & Liner

•  Adhesive: Henkel solvent-based acrylic, transparent, ultra-weather-resistant (viscosity 1000–3000 cps, thickness 12 μm dry)
•  Release Liner: Felix Schoeller, double-side PE coated Kraft, solventless silicone-coated, air-release (ISO 9001, ISO 14001, OHSAS 18001)

Performance

•  Durability / Warranty: View Datasheet
•  Dimensional Stability: Shrinkage less than 0.20%
•  Plastification: 25% – 32%
•  Breaking Strength: 30.7 N/10mm (ASTM D3759/D3759M-05)
•  Peel Strength (Steel Panel): 9 N/10mm (ASTM D3330/D3330-04)

UV Resistance

Test Standards: ASTM D4329-13 Cycle A & ISO 105-A02:1993/Cor.2:2005
Result: 4–5
Conditions: UVA-340, 0.89 W/(m²·nm) @340nm, 8h UV at 60°C + 4h condensation at 50°C, total duration 48h

Installation Guidelines

•  Application Temperature: +18°C to +20°C
•  Usage Temperature: -30°C to +30°C
•  Tools: Standard squeegee with soft buffer
•  Surface Compatibility: Smooth and medium-curved surfaces
•  Directional: Yes
•  Overlap Width: 3–4 mm

Storage

•  Storage Period: Up to 3 years
•  Conditions: +10°C to +20°C, 50% humidity, original packaging, away from sunlight, clean and dry environment

Packaging

•  Roll Size: 152 cm × 18 m
•  Weight: 13 kg

Important Notes

• Remove the protective cap before installation.
• Colors and finishes may vary slightly from screen display—refer to physical swatches for accuracy.
• Use rolls from the same production lot to avoid color variation.
• Film may scratch during installation or daily use; scratches are not covered under warranty.
