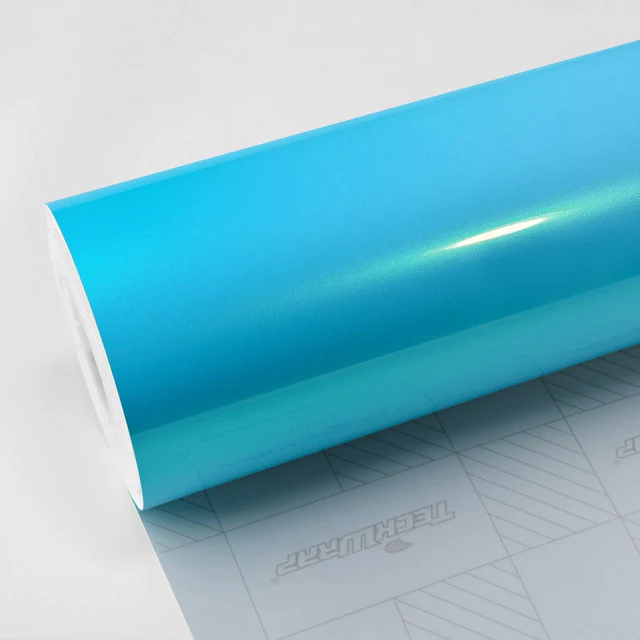

Caribbean Blue (RB09-HD) Vinyl Wrap

Description

TeckWrap Caribbean Blue brings the brilliance of the sea and sky to your vehicle. Perfect for those who seek inspiration, creativity, and a distinctive look, this vinyl wrap combines elegance with functionality. Its high-gloss metallic finish highlights every curve and contour of your car, making it a true statement piece.

It is crafted from premium polymeric multilayered calendared vinyl film with air-release channels, Caribbean Blue ensures smooth, bubble-free installation. The film is stretchable and highly conformable, allowing you to wrap edges, curves, and recessed areas with ease. Its Henkel solvent-based acrylic adhesive is ultra-weather-resistant, safe for car paint, and ensures secure adhesion without damaging surfaces.

Specifications

•  Film Type: Premium-grade polymeric multilayered hybrid vinyl film with air-release channels
•  Film Thickness: 122 µm
•  Release Liner Thickness: 142 µm (HD SKU models include a plastic release liner)
•  Width & Length: Standard roll size – 1.52 m × 18 m (59.8″ × 708.6″)
•  Series: 190 series
•  Adhesive: Henkel solvent-based acrylic, transparent, ultra-weather-resistant, viscosity 1000–3000 cps, thickness 12 μm dry
•  Shelf Life: 2 years if stored at +10°C to +20°C, relative humidity 50%, in original packaging, away from direct sunlight, clean and dry place
•  Durability / Warranty: Click here for TeckWrap Datasheet
•  Release Force (N/25mm): Standard 0.10–0.30 | Result 0.17 (23℃, 54%H)
•  Initial Tack (g/25mm): Standard 800–1500 | Result 840 (23℃, 54%H)
•  180° Peel Strength (N/25mm): Standard ≥6.8 | Result 8.7 (23℃, 54%H)
•  Adhesion Strength: Standard ≥60 | Result 70 (No shifting)
•  Aging (65℃, 7 days): No adhesive residue
•  Aging (-65℃, 10 days): No adhesive residue

Installation Guidelines

•  Application Temperature: +17°C to +18°C
•  Usage Temperature: -45°C to +45°C
•  Recommended Tools: Soft squeegee with buffer, knife, masking tape, heat gun, magnets, gloves, IRR thermometer, IRR heater
•  Conformability: Smooth and medium curved surfaces
•  Directional: Yes
•  Overlap Width: 3–4 mm
•  Application Method: Standard for calendered films; avoid overstretching; post-heating recommended
•  Post-Heating Temperature: 100°C
•  Cure Time: 24 hours above 10°C; 48 hours recommended for maximum adhesive activation
•  Aftercare: PH-neutral products; avoid hot wax or solvents

Package Details

•  Roll Width: 152 cm
•  Roll Length: 18 m

Important Notes

• Colors, images, and finishes on-screen are approximate. Always check the color swatch for accurate representation.
• Use rolls from the same production LOT number for consistent color coverage.
• Film may scratch during application or daily use; scratches are not covered under warranty.
•  Peel off protective cap before installation.
