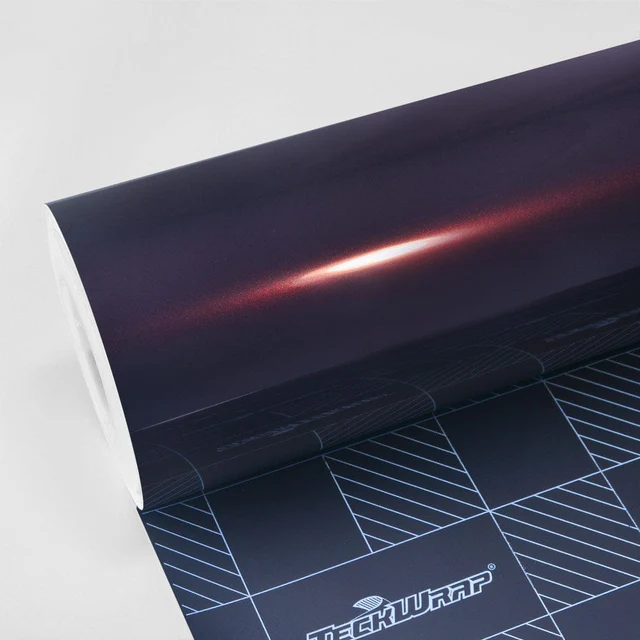

Burgundy Black (HM10-HD) Vinyl Wrap

Description

TeckWrap Burgundy Black evokes the rich tones of grapes and fine wine, offering a refined, elegant finish for vehicles. Perfect for those who value subtle sophistication, this wrap enhances your car’s appearance while protecting the original paint. Ideal for full wraps, accents, or creative detailing, it transforms any vehicle into a statement of class and style.

Crafted from high-quality, pressure-sensitive polymeric hybrid vinyl with air-release channels, the wrap ensures smooth, bubble-free installation. Its Henkel solvent-based acrylic adhesive is ultra-weather-resistant, safe on paint, and allows hassle-free removal if needed. The material is stretchable and highly conformable, making it easy to wrap edges, curves, and recessed areas.

Specifications

•  Film Type: Pressure-sensitive premium-grade polymeric hybrid vinyl with air-release channels
•  Film Thickness: 0.13 mm
•  Film with Release Liner Thickness: 0.29 mm
•  Series: 190 Series
•  Adhesive: Henkel solvent-based acrylic, transparent, ultra-weather-resistant, viscosity 1000–3000 cps, thickness 12 µm dry
•  Release Liner: Plastic release liner (HD SKU models only)
•  Storage: +10°C to +20°C, 50% relative humidity, in original packaging, away from direct sunlight; shelf life: 3 years
•  Durability/Warranty: Click here for TeckWrap Datasheet
•  Post Heating: 100°C
•  Surface Gloss (CD): 14.5% (ASTM D523-99, 60° angle)

Performance & Material Properties

•  Elongation / Break: MD: 206.8 / CD: 196.4 (ASTM D882-02)
•  Tensile Strength: MD: 29.5 / CD: 24.8 N/mm², Speed 200 mm/min (ASTM D882-02)
•  Dimensional Stability: 2% shrinkage at 70°C (ASTM D1204-02)
•  Surface Tension: 34 dynes/cm (ASTM D2578-04a, 24 hours after production)

Installation Guidelines

•  Application Temperature: +17°C to +18°C
•  Service Temperature: -45°C to +45°C
•  Tools Needed: Standard squeegee with soft buffer
•  Conformability: Smooth and medium-curved surfaces
•  Directional: Yes
•  Overlap Width: 3–4 mm
•  Protective Cap: Must be peeled off before installation

Packaging

•  Roll Width: 152 cm
•  Roll Length: 18 m
•  Weight: 13 kg

Important Notes

• Screen images, colors, and finishes are approximate; always check the color swatch
• Use rolls from the same production LOT for consistent color
• Scratches during application or daily use are not covered under warranty
