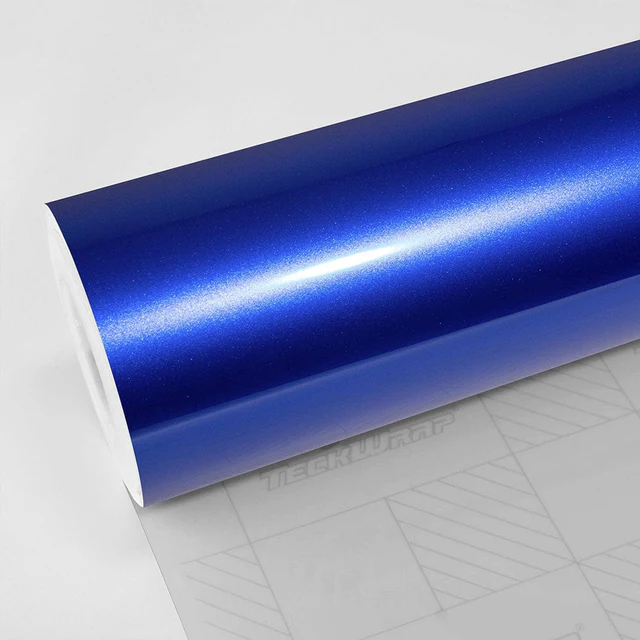

Blue Gem (GAL02-HD) Vinyl Wrap

Description

TeckWrap Blue Gem captures the brilliance and luster of a gemstone, giving your vehicle a striking and luxurious appearance. Designed for those who want their car to stand out, this high-gloss aluminum vinyl wrap combines durability, conformability, and style. Perfect for full wraps, accent details, or highlights, it transforms your vehicle into a show-stopping masterpiece.

Crafted from advanced polymeric multilayered film with a silver coating and air-release channels, Blue Gem ensures smooth application, bubble-free installation, and a flawless finish. Its stretchable material wraps edges and recessed areas easily, while the Henkel solvent polyacrylate adhesive is safe for car paint, ultra-weather-resistant, and provides moderate initial tack for hassle-free installation.

Specifications

•  Film Type: Advanced polymeric multilayered hybrid vinyl with air-release channels
•  Film Thickness: 132 µm
•  Release Liner Thickness: 180 µm
•  Note: Products with “HD” in SKU include a plastic release liner for high-gloss finish
•  Width & Length: 1.52 m × 18 m (59.8″ × 708.6″, 4.98 ft × 59 ft, 1.66 yd × 19.6 yd)
•  Adhesive: Henkel solvent-based polyacrylate, transparent, ultra-weather-resistant, viscosity 1000–3000 cps, 12 µm dry thickness
•  Durability/Warranty: Click here for TeckWrap Datasheet
•  Release Force (N/25mm): 0.10–0.30, Result: 0.1 (23℃, 54% RH)
•  Initial Tack (g/25mm): Standard 800–1500, Result: 1055 (23℃, 54% RH)
•  180° Peel Strength (N/25mm): Standard ≥7.85, Result: 9.7 (23℃, 54% RH)
•  Adhesion Strength: Standard ≥60, Result: 70 (No shifting)
•  Aging: High-temperature 65℃ (7 days) and low-temperature -65℃ (10 days) without adhesive residue

Installation Guidelines

•  Recommended Application Temperature: +17°C to +18°C
•  Service Temperature: -45°C to +45°C
•  Tools Needed: Soft squeegee with buffer
•  Conformability: Smooth and medium-curved surfaces
•  Directional: Yes
•  Overlap Width: 3–4 mm
•  Cure Time: 24 hours above 15°C; 48 hours recommended for full adhesive activation
•  Application Method: Standard for polymeric calendared and hybrid films; thorough cleaning, no overstretching, post-heating 100℃ for flat surfaces and 120℃ for curves/overlaps
•  Aftercare: PH-neutral products; avoid hot wax or solvents
•  Protective Cap: Peel off before installation

Packaging

•  Roll Width: 152 cm
•  Roll Length: 18 m
•  Weight: ~13 kg

Important Notes

• Screen images may not represent the true color; always check the color swatch
• Use rolls from the same production LOT to ensure consistent color
• Scratches during application or daily use are not covered under warranty
