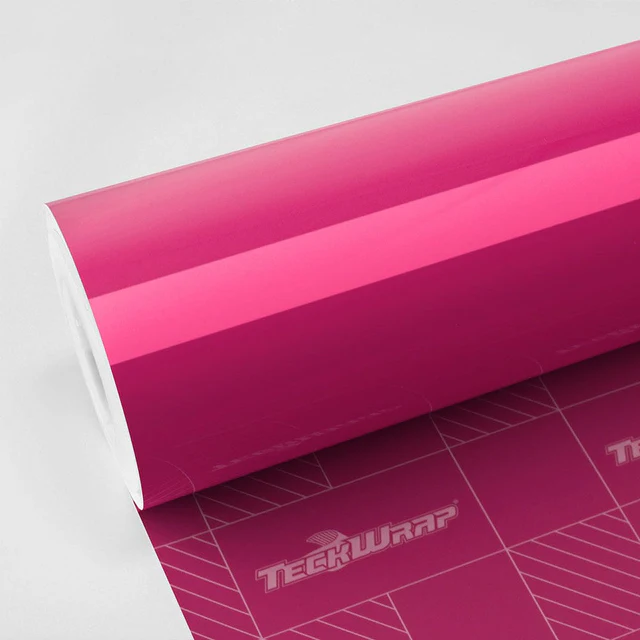

Berry Red (CG49-HD) Vinyl Wrap

Description

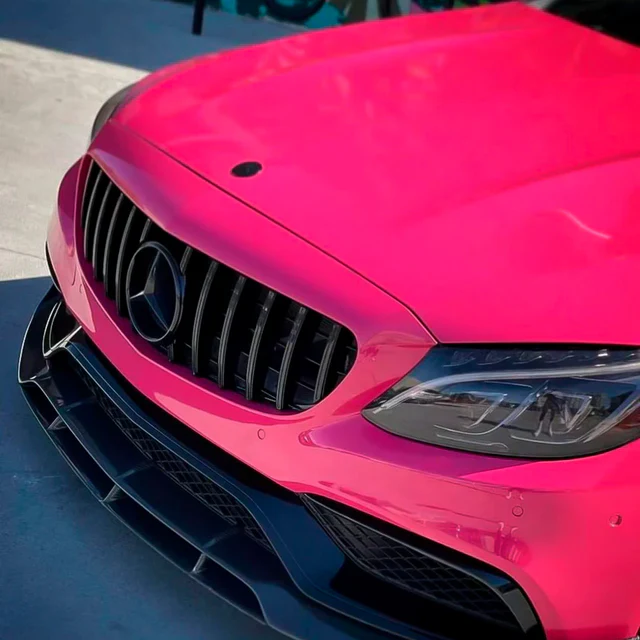

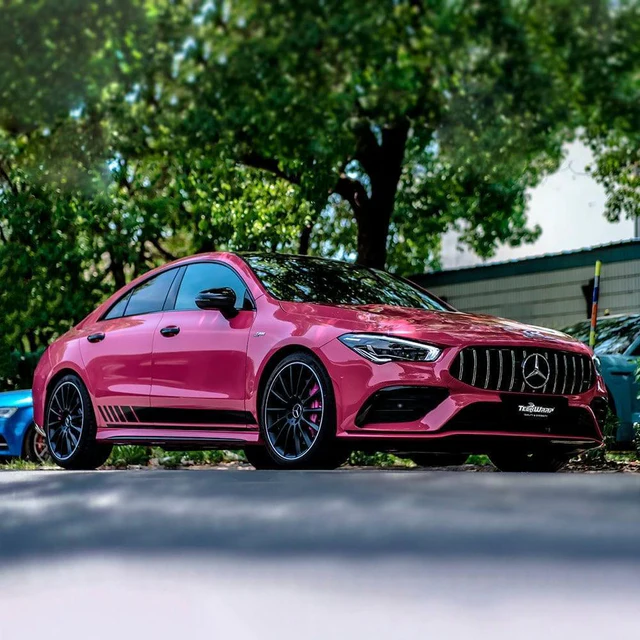

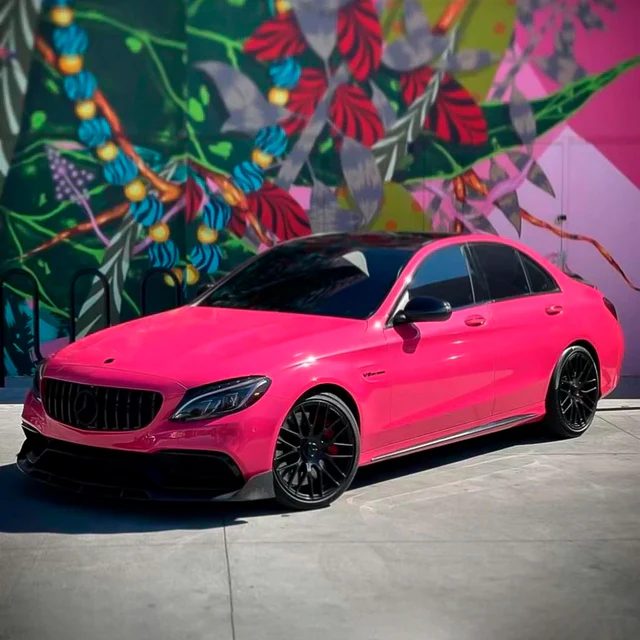

TeckWrap Berry Red is bright, blazing, and full of personality, perfect for those who want to make a statement. This high-gloss vinyl wrap enhances your vehicle’s look with a bold, professional finish while protecting the underlying paint.

TeckWrap’s gloss HD colors provide a smooth, shiny surface without orange peel. The material is stretchable, making it easy to wrap edges and recessed areas. The Henkel solvent-based acrylic adhesive is safe for car paint and ensures easy installation and removal. A PET protective layer prevents scratches during installation, while the plastic liner increases gloss and reflection. All TeckWrap vinyl wraps are high-quality yet affordable, delivering professional results every time.

Specifications

•  Film Type: Premium-grade polymeric hybrid film with air-release channels
•  Film Thickness: 110 µm
•  Release Liner Thickness: 142 µm
•  Adhesive: Henkel solvent-based acrylic, ultra-weather-resistant, viscosity 1000–3000 cps, thickness 12 µm dry
•  Release Liner: Plastic liner
•  Roll Size: 152 cm × 18 m or 23 m
•  Storage: Store at +10°C to +20°C, 50% relative humidity, in original packaging, away from direct sunlight; shelf life: 2 years
•  Durability/Warranty: Click here for TeckWrap Datasheet

Performance

•  Release Force (N/25mm): 0.18 (Standard 0.10–0.30)
•  Initial Tack (g/25mm): 1015 (Standard 800–1500)
•  180° Peel Strength (N/25mm): 8.1 (Standard ≥4.9)
•  Adhesion Strength: 70 (Standard ≥60, no shifting)
•  Aging (65°C, 7 days): No adhesive residue
•  Aging (-65°C, 10 days): No adhesive residue

Installation Guidelines

•  Application Temperature: +16°C to +18°C
•  Service Temperature: -30°C to +45°C
•  Tools Required: Standard squeegee with soft buffer
•  Conformability: Smooth and medium-curved surfaces
•  Directional: No
•  Overlap Width: 3–4 mm
•  Post Heating: 95°C
•  Protective Cap: Peel off before installation

Aftercare

• Use PH-neutral cleaning products
• Avoid hot wax or strong solvents
• Handle carefully to prevent scratches

Important Notes

• Screen images may not accurately reflect the true color; always check the color swatch
• Use rolls from the same production LOT for consistent color
• Scratches during installation or daily use are not covered under warranty
